How to add machine on Tailscale

Problem Statement

Sometimes we have machines located in different places and networks. This creates access and management challenges.

Common Issues

• Server located in another site or data center

• Client PC inside a private LAN (behind NAT)

• No public IP available

• Firewall blocking direct access

• Traditional VPN setup is complex and hard to maintain

• Port forwarding increases security risk

Why We Use Tailscale

• Securely connect machines across different networks

• No need to expose public IP or open ports

• Encrypted communication between devices

• Access remote machines as if they are in the same local network

• Simple deployment without complex VPN configuration

Tools Required

Before starting, ensure the following:

System Requirements

• Linux machine (Ubuntu Server / Desktop recommended)

• Root or sudo access

• Internet connection

Access Requirements

• Tailscale Admin Console access

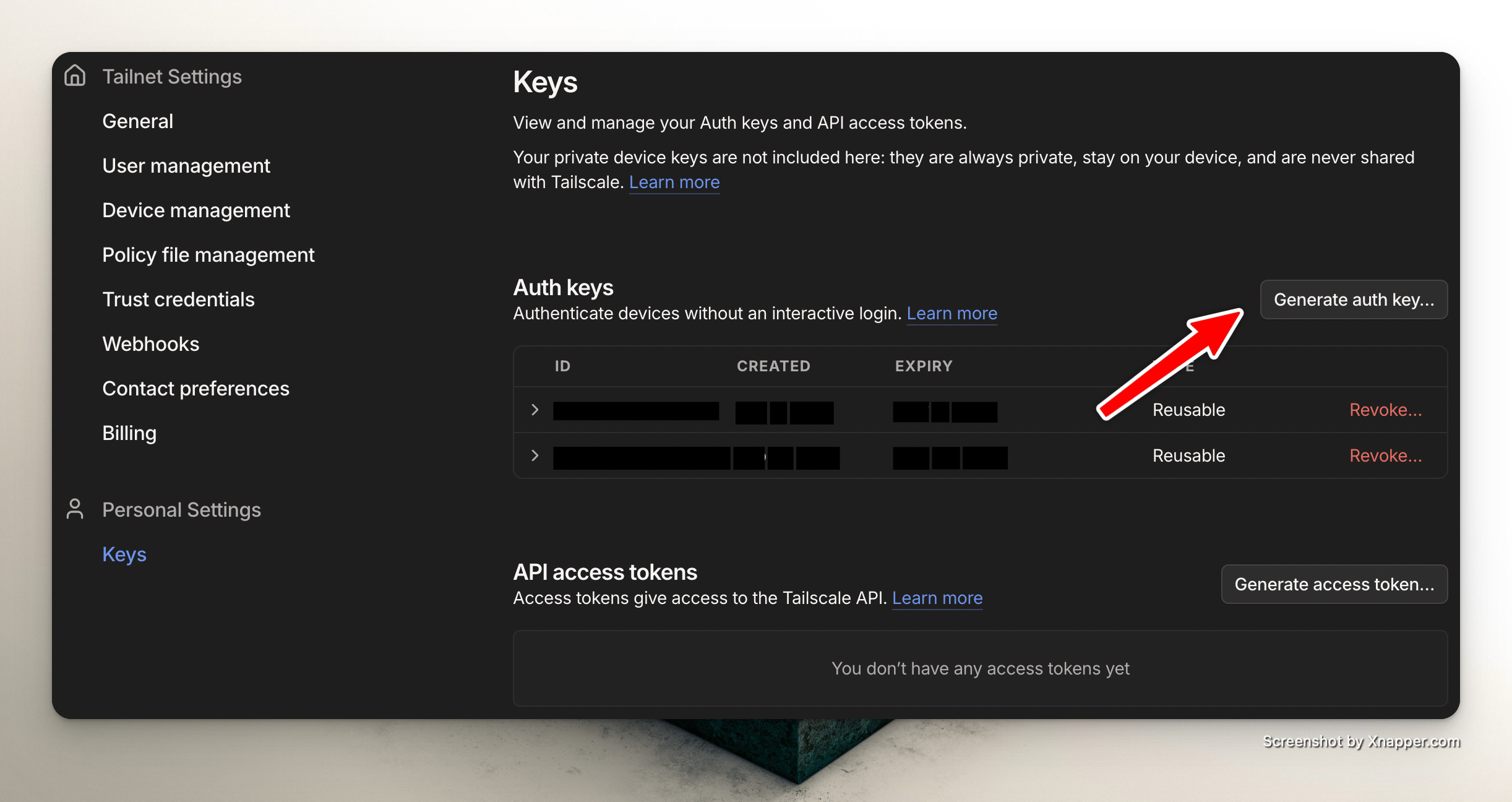

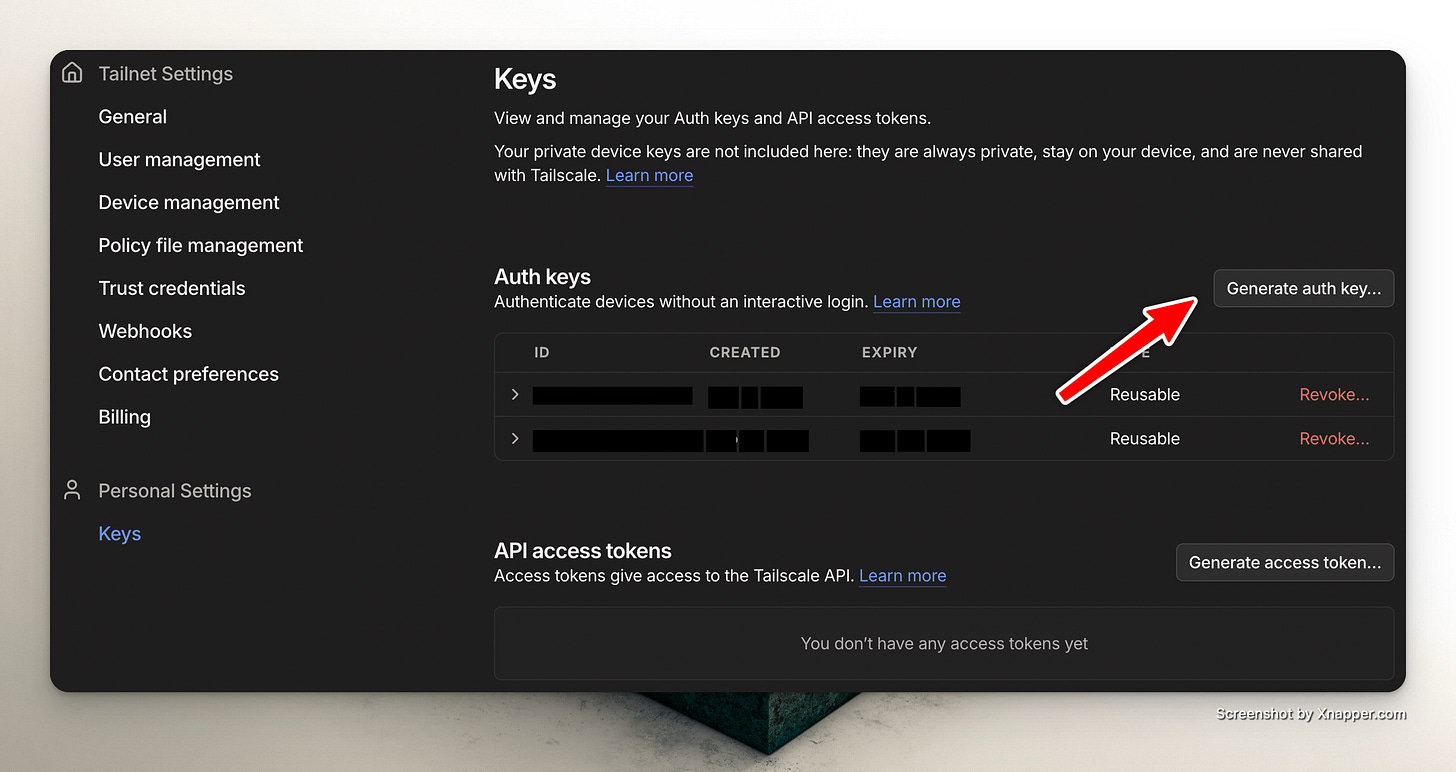

• Auth Key generated from:
  Admin Console → Settings → Keys

This guide explains how to:

1. Install Tailscale

2. Join the machine to your Tailnet

3. Enable IP forwarding

4. Advertise local network routes (optional)

---

1) Install Tailscale

Run:

curl -fsSL https://tailscale.com/install.sh | sh

Verify installation:

tailscale version

---

2) Join Machine to Tailnet

Run:

sudo tailscale up --accept-routes --auth-key=<INSERT_AUTH_KEY_HERE>

Replace <INSERT_AUTH_KEY_HERE> with your auth key from:

Tailscale Admin Console → Settings → Keys

What this does

• Authenticates machine to your Tailnet

• Accepts routes advertised by other nodes

Check status:

tailscale status

---

3) Enable IP Forwarding (Required for Subnet Router)

If this machine will act as a subnet router, enable forwarding.

Enable IPv4

echo ‘net.ipv4.ip_forward = 1’ | sudo tee -a /etc/sysctl.d/99-tailscale.conf

Enable IPv6

echo ‘net.ipv6.conf.all.forwarding = 1’ | sudo tee -a /etc/sysctl.d/99-tailscale.conf

Apply Configuration

sudo sysctl -p /etc/sysctl.d/99-tailscale.conf

Verify:

sysctl net.ipv4.ip_forward

Expected output:

net.ipv4.ip_forward = 1

---

4) Advertise Local Network (Optional – Subnet Router Mode)

If this machine connects to a local LAN and you want remote Tailscale users to access that LAN:

sudo tailscale set --advertise-routes=X.X.X.X/24

Replace X.X.X.X/24 with the actual LAN subnet.

Example:

sudo tailscale set --advertise-routes=192.168.1.0/24

---

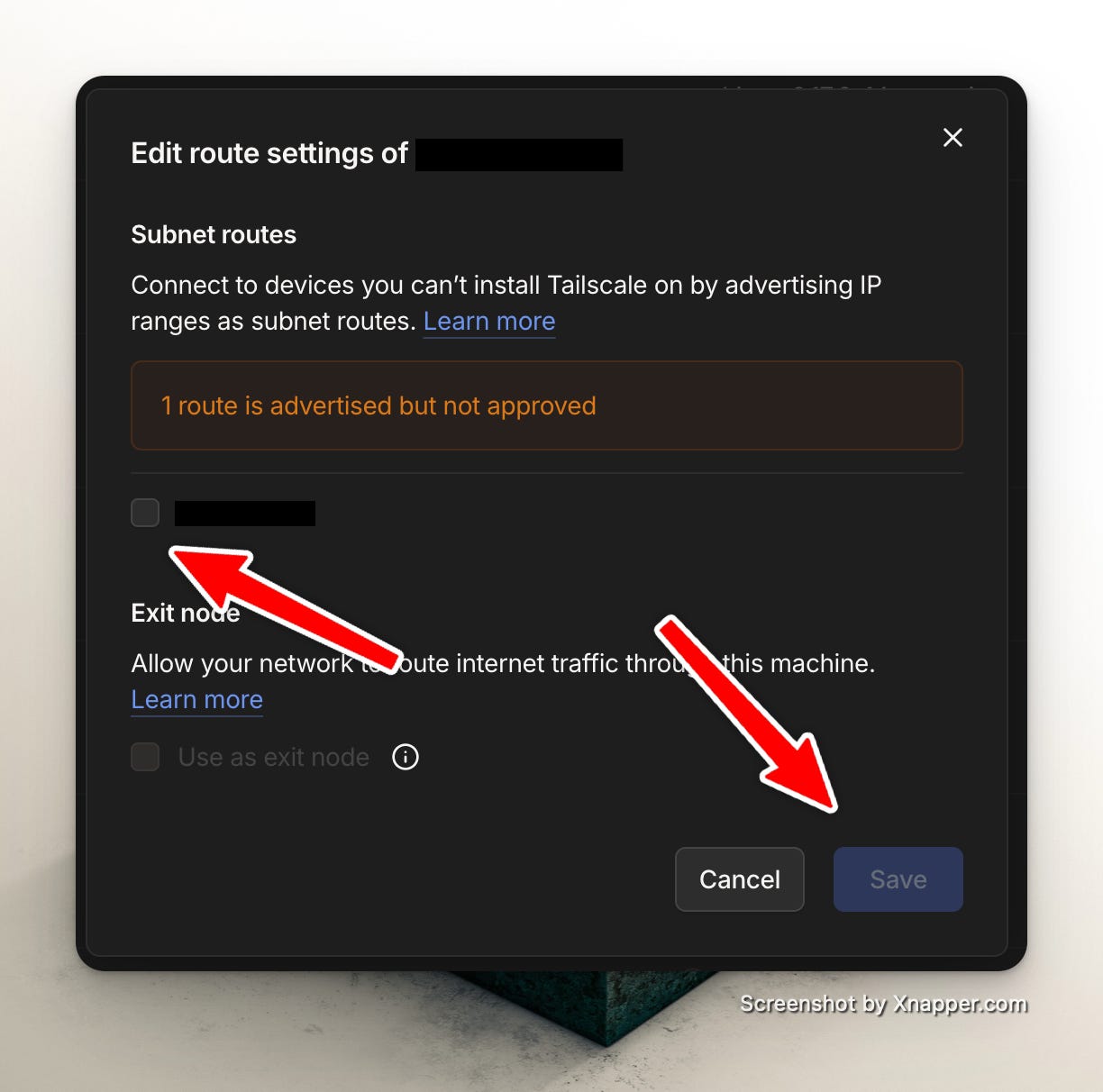

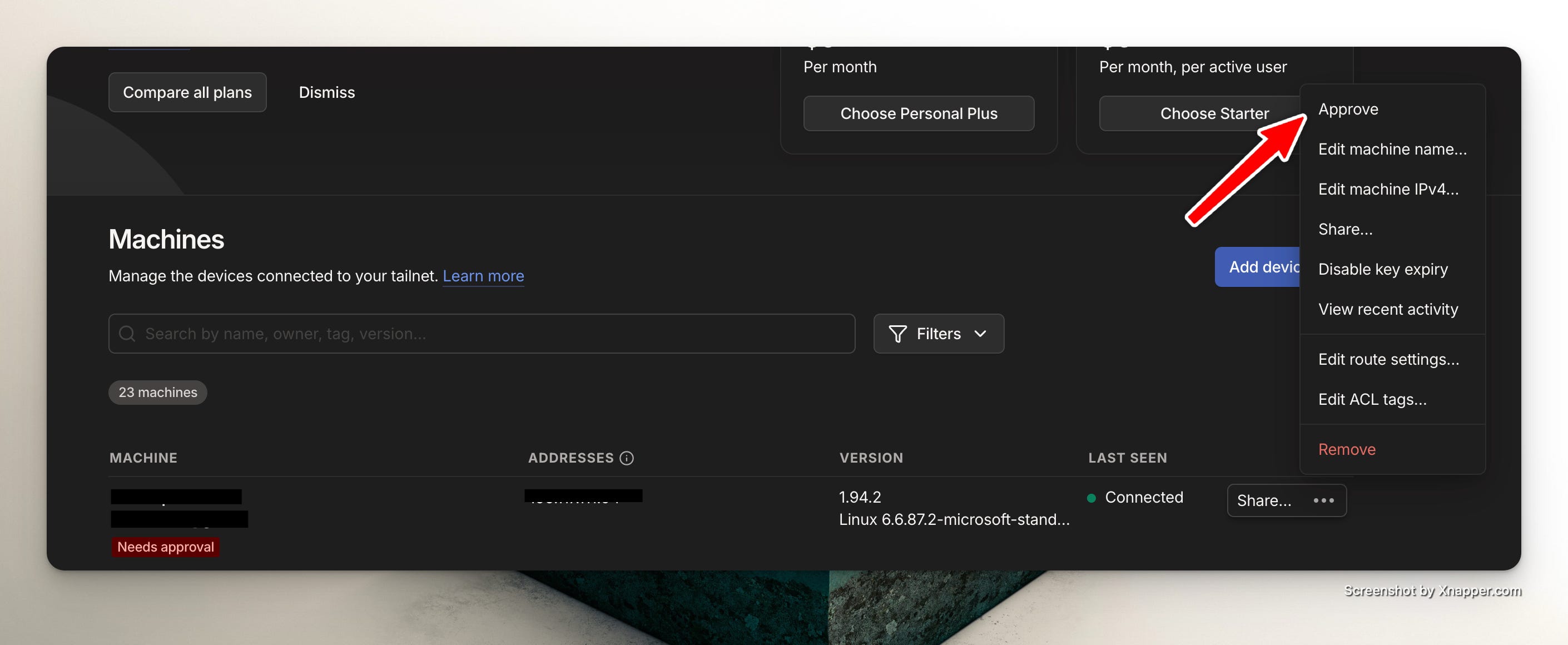

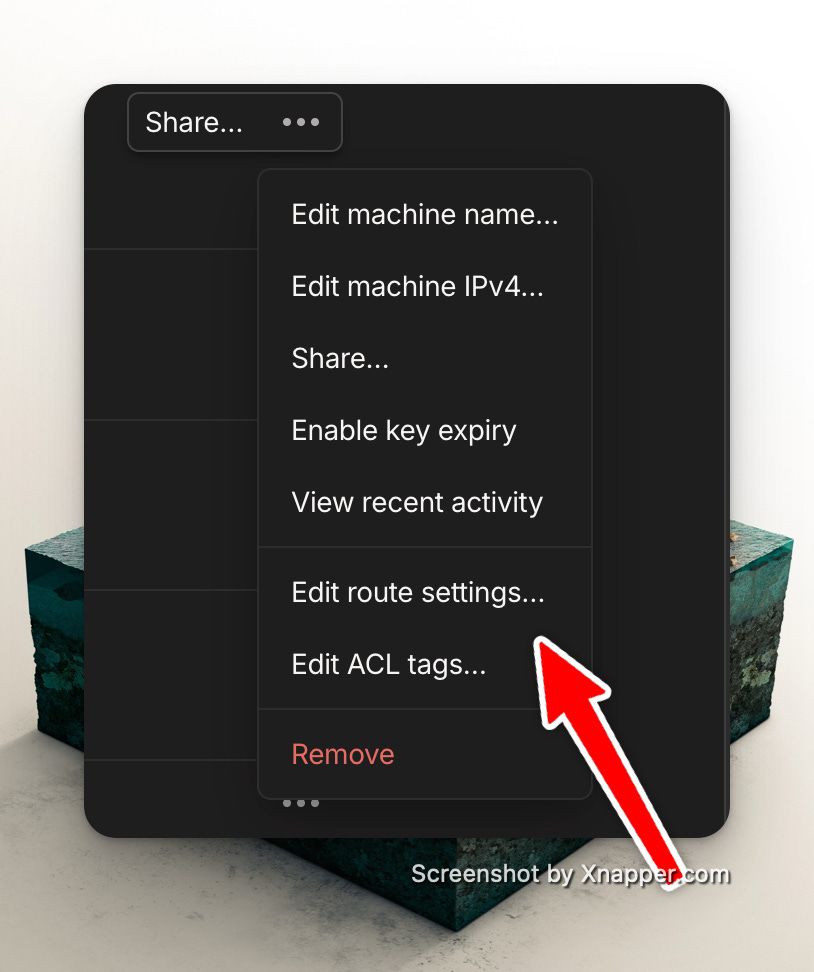

5) Approve Route in Admin Console

After advertising routes:

1. Go to Tailscale Admin Console

2. Open Machines

3. Select the new machine

4. Enable the advertised subnet

The route will not work until approved.

---

Important Notes

• Auth keys can expire (check expiration in the Admin Console).

• If you do not want the machine to expire, disable key expiry when creating the auth key in the Admin Console.

• Route advertisements must be approved manually.

• Firewall (UFW / firewalld) must allow forwarding if enabled.

• If using as an exit node, additional configuration is required.
